Technical characteristics

Frame Range

H180/225

Power Range

15~55kW

Rated Voltage

波肖门尾图库380V（Special voltage customization）

Rated Frequency

50Hz（Special frequency customization）

Poles

4

Protection Degree

IP55

Cooling ModeIC411Insulation ClassF
Operation ModeS1Installation ModeB3、B5、B35
Wiring ModeY/∆

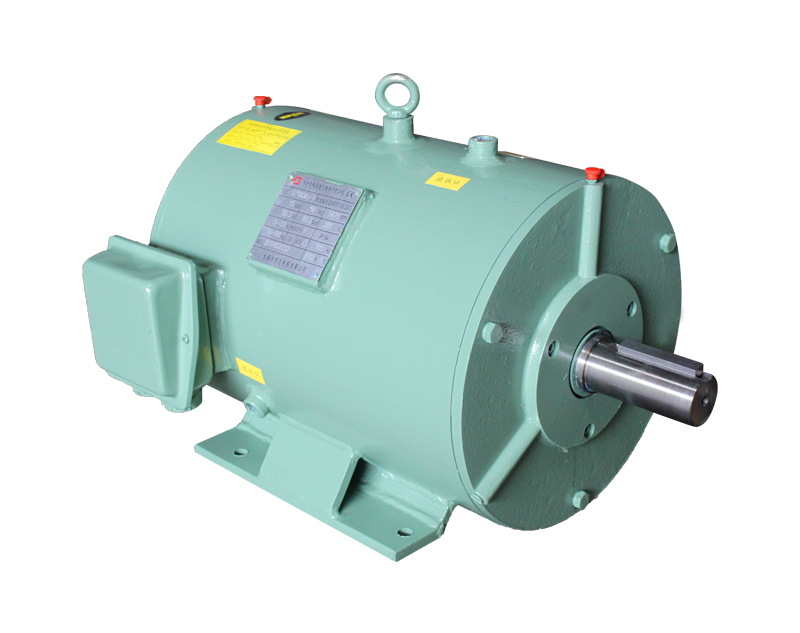

Water cooled motor

This series of motors are fully enclosed water-cooled squirrel cage three-phase asynchronous motors. Due to circulating water cooling instead of fan cooling, compared with motors of the same specification, they have the characteristics of high efficiency, low temperature rise, strong anti fiber blockage ability, low noise, safety and reliability. It is applicable to various textile and printing and dyeing machinery such as cotton, wool, hemp, silk and chemical fiber. It can work for a long time in the environment with much dust, short fiber and high temperature and humidity.

Operating conditions
  • -15°C~+40°C
    Ambient air temperature
  • ≤90% (At25°C)
    Monthly average maximum relative humidity of ambient air
  • ≤1KM
    Altitude

    • Special water-cooled two speed motor for spinning frame

    ModelPowerCurrentSpeedNoiseInsulation
    Class    		Degree of
    protection    		ConnectionLocked Torque / Rated CurrentLocked Torque / Rated TorqueMax. Torque /
    Rated Torque
    kWAr/mindBIst/INTst/TNTM/TN
    FSLD180M1-6/47/1517.1/29.2960/144080FIP543Y/4Y7/61.1/1.72.2/1.7
    FSLD180M2-6/49/1721.6/33.37/61.1/1.7
    FSLD180L1-6/411/18.526.1/36.27/61.1/1.7
    FSLD180L2-6/411/2226.1/42.17/61.1/1.7


    Special water cooling frequency conversion speed regulating three-phase asynchronous motor for spinning frame

    ModelPowerCurrentSpeedRated
    Torque    		Power
    Factor    		EfficiencyConstant TorqueConstant
    Power    		Insulation ClassDegree of protectionLocked Torque /
    Rated Current    		Locked Torque /
    Rated Torque    		Max. Torque /
    Rated Torque
    kWAr/minN·mcosΦηHzHzIst/INTst/TNTM/TN
    FE2SP180M1-41530146095.50.8490.65~5050~100FIP557.522.3
    FE2SP180M2-417331470108.20.8591.05~5050~100FIP557.622.3
    FE2SP180L1-418.5361470117.80.8591.25~5050~100FIP557.622.3
    FE2SP180L2-422421470140.10.8691.65~5050~100FIP557.72.12.3
    FE2SP225S-437711475235.50.8692.75~5050~100FIP557.32.12.3
    FE2SP225M-445851475286.50.8693.15~5050~100FIP557.32.22.3
    FE2SP225M2-4551041475350.10.8693.55~5050~100FIP557.32.22.3


    Water cooled permanent magnet variable frequency speed regulating three-phase synchronous motor (FSL type)

    ModelPowerCurrentSpeedFrequencyPower
    Factor    		EfficiencyInsulation
    Class    		Degree of
    protection    		Locked Torque /
    Rated Current    		Locked Torque /
    Rated Torque    		Max. Torque /
    Rated Torque
    kWAr/minHzcosΦηIst/INTst/TNTM/TN
    XYT-180M1-4F15251500500.9794.0FIP556.82.32.3
    XYT-180M2-4F18.530.71500500.9794.3FIP557.12.32.3
    XYT-180L1-4F2236.41500500.9794.7FIP556.42.32.3
    XYT-180L3-4F3049.51500500.9795.0FIP557.62.32.3
    XYT-225S-4F3760.81500500.9795.3FIP556.82.32.3
    XYT-225M-4F4573.71500500.9795.6FIP557.12.32.3
    XYT-225M2-4F5589.91500500.9795.8FIP556.42.32.3
