Technical characteristics

Frame Range

H150/160

Power Range

3~7.5kW

Rated Voltage

380V（Special voltage customization）

Rated Frequency

50Hz（Special frequency customization）

Poles

4

Protection Degree

IP54

Cooling ModeIC411Insulation ClassF
Operation ModeS1Installation ModeB3
Wiring ModeY/∆

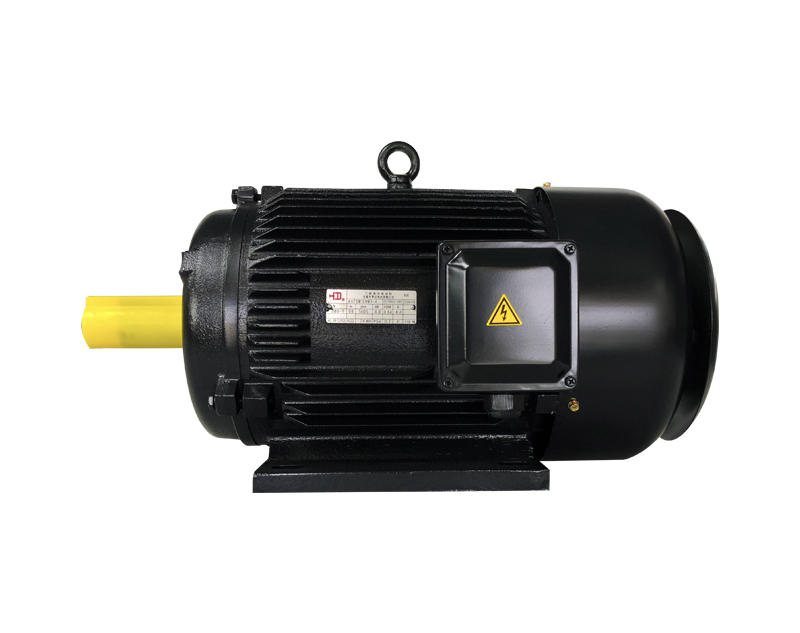

FSM three phase asynchronous motor

This type of motor is specially designed for carding cylinder (large drum). It is mainly suitable for working under the conditions of large moment of inertia, long starting time, much dust, short fiber and high temperature and humidity.

Operating conditions
  • -15°C~+40°C
    Ambient air temperature
  • ≤90% (At25°C)
    Monthly average maximum relative humidity of ambient air
  • ≤1KM
    Altitude
    • ModelRated PowerAt full loadLocked Torque /
    Rated Current    		Locked Torque /
    Rated Torque    		Max. Torque /
    Rated Torque    		Weight
    Current SpeedEfficiencyPower Factor
    kWAr/minηcosΦIst/INTst/TNTM/TNkg
    FSM150M2-436.51440840.846.533.595
    FSM150M3-448.61440840.846.533.5100
    FSM160M2-45.511.91440840.846.533.5110
    FSM160M3-47.516.11440840.846.533.5115
