Technical characteristics

Frame Range	H80~450	Power Range	0.55~1000kW
Rated Voltage	波肖门尾图库380V（Special voltage customization）	Rated Frequency	波肖门尾图库50Hz（Special frequency customization）
Efficiency Level	IE4	Poles	2、4、6、8极
Protection Degree	IP55	Cooling Mode	IC411
Insulation Class	F	Operation Mode	S1
Installation Mode	B3、B5、B35、B14、B34、V1	Wiring Mode	Y/∆

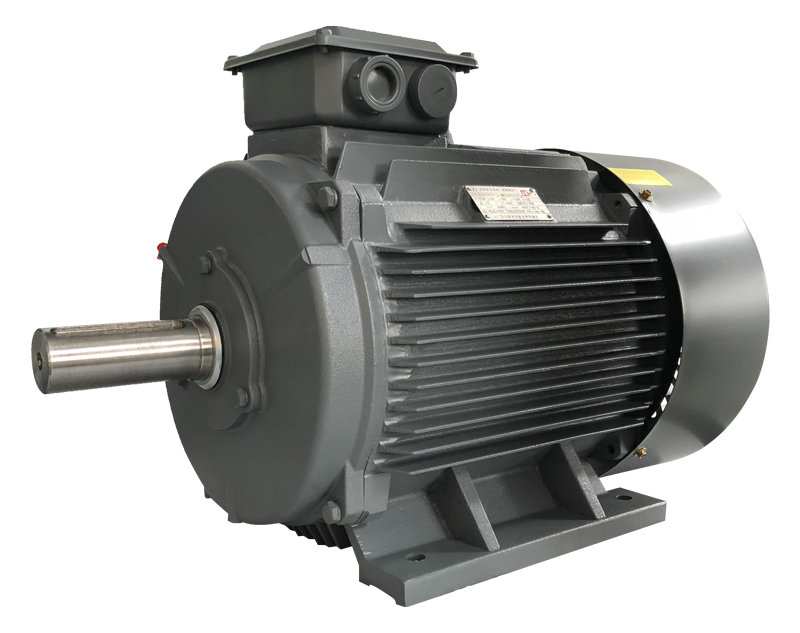

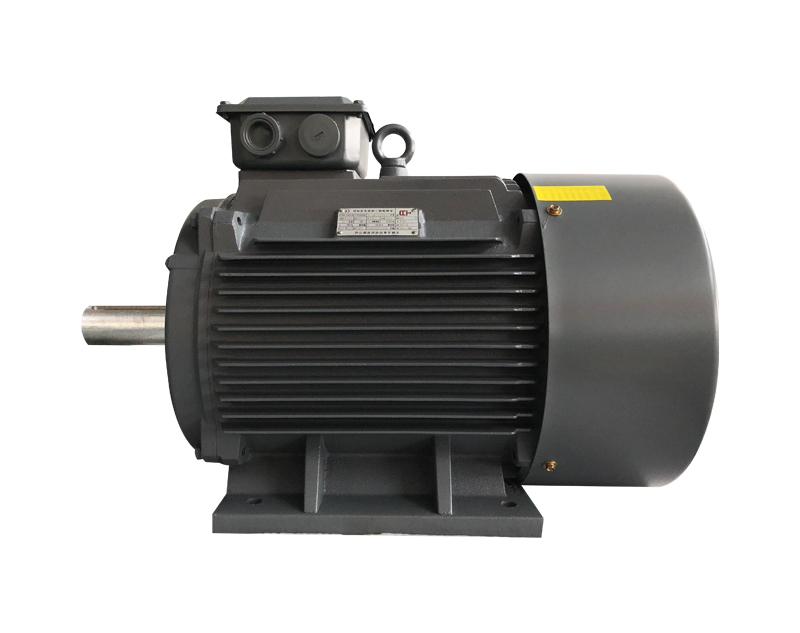

YE4 series three-phase asynchronous motor

YE4 series motor is a fully enclosed, self fan cooled squirrel cage three-phase asynchronous motor made of new materials, new technology and optimized design. This series of motors meet IE4 energy efficiency requirements in iec60034-30-2014 and ye4 performance requirements in JB / t13299-2017. Ye4 series motors have high efficiency, large starting torque, low noise and mature cooling and heat dissipation conditions. This series of motors are general-purpose three-phase asynchronous motors, which can be used to drive all kinds of general mechanical equipment, such as compressors, fans, water pumps and other mechanical equipment. They can also be used in petroleum, chemical industry, medicine, mining and other environments.

Operating conditions

-15°C~+40°C

Ambient air temperature

≤90% (At25°C)

Monthly average maximum relative humidity of ambient air

≤1KM

Altitude

Model	Poles	Rated Power	Current	Rated Speed	Rated Torque	Efficiency	Power Factor	Noise	Protection Degree	Insulation Class	Duty	Connection	Frequency	Rated Voltage
Model	Poles	kW	A	r/min	N·m	η	cosΦ	dB	Protection Degree	Insulation Class	Duty	Connection	Hz	V
YE4-80M1-2	2	0.75	1.6	2900	2.4	83.5	0.83	62	IP55	F	S1	Y	50	380
YE4-80M2-2	2	1.1	2.4	2900	3.5	85.2	0.83	62	IP55	F	S1	Y	50	380
YE4-90S-2	2	1.5	3.1	2890	4.8	86.5	0.85	67	IP55	F	S1	Y	50	380
YE4-90L-2	2	2.2	4.4	2895	7.0	88.0	0.86	67	IP55	F	S1	Y	50	380
YE4-100L-2	2	3	5.9	2905	9.6	89.1	0.87	74	IP55	F	S1	Y	50	380
YE4-112M-2	2	4	7.7	2910	12.7	90.0	0.88	77	IP55	F	S1	∆	50	380
YE4-112L-2	2	5.5	10.4	2910	17.5	90.9	0.88	77	IP55	F	S1	∆	50	380
YE4-132S1-2	2	5.5	10.4	2950	17.5	90.9	0.88	79	IP55	F	S1	∆	50	380
YE4-132S2-2	2	7.5	14.0	2950	23.9	91.7	0.89	79	IP55	F	S1	∆	50	380
YE4-132S3-2	2	9	16.7	2950	28.7	92.1	0.89	79	IP55	F	S1	∆	50	380
YE4-132M-2	2	11	20.3	2950	35.0	92.6	0.89	79	IP55	F	S1	∆	50	380
YE4-132L-2	2	15	27.4	2950	47.8	93.3	0.89	79	IP55	F	S1	∆	50	380
YE4-160M1-2	2	11	20.3	2955	35.0	92.6	0.89	81	IP55	F	S1	∆	50	380
YE4-160M2-2	2	15	27.4	2955	47.8	93.3	0.89	81	IP55	F	S1	∆	50	380
YE4-160L-2	2	18.5	33.7	2955	58.9	93.7	0.89	81	IP55	F	S1	∆	50	380
YE4-160L2-2	2	22	40.0	2955	70.0	94.0	0.89	81	IP55	F	S1	∆	50	380
YE4-180M0-2	2	18.5	33.7	2970	58.9	93.7	0.89	83	IP55	F	S1	∆	50	380
YE4-180M-2	2	22	40.0	2970	70.0	94.0	0.89	83	IP55	F	S1	∆	50	380
YE4-180L1-2	2	25	45.3	2970	79.6	94.2	0.89	83	IP55	F	S1	∆	50	380
YE4-180L2-2	2	30	54.2	2970	95.5	94.5	0.89	83	IP55	F	S1	∆	50	380
YE4-180LX-2	2	37	66.6	2970	117.8	94.8	0.89	83	IP55	F	S1	∆	50	380
YE4-200L1-2	2	30	54.2	2975	95.5	94.5	0.89	84	IP55	F	S1	∆	50	380
YE4-200L2-2	2	37	66.6	2975	117.8	94.8	0.89	84	IP55	F	S1	∆	50	380
YE4-200LX-2	2	45	80.9	2975	143.3	95.0	0.89	84	IP55	F	S1	∆	50	380
YE4-225M-2	2	45	80.9	2975	143.3	95.0	0.89	86	IP55	F	S1	∆	50	380
YE4-225M2-2	2	55	98.5	2975	175.1	95.3	0.89	86	IP55	F	S1	∆	50	380
YE4-250M-2	2	55	98.5	2985	175.1	95.3	0.89	89	IP55	F	S1	∆	50	380
YE4-250M2-2	2	75	133.9	2985	238.8	95.6	0.89	89	IP55	F	S1	∆	50	380
YE4-280S-2	2	75	133.9	2985	238.8	95.6	0.89	91	IP55	F	S1	∆	50	380
YE4-280M-2	2	90	160.4	2985	286.5	95.8	0.89	91	IP55	F	S1	∆	50	380
YE4-280L-2	2	110	195.6	2985	350.2	96.0	0.89	91	IP55	F	S1	∆	50	380
YE4-280M2-2	2	110	195.6	2985	350.2	96.0	0.89	91	IP55	F	S1	∆	50	380
YE4-280MX-2	2	132	234.2	2985	420.2	96.2	0.89	91	IP55	F	S1	∆	50	380
YE4-315S-2	2	110	195.6	2990	350.2	96.0	0.89	92	IP55	F	S1	∆	50	380
YE4-315M-2	2	132	234.2	2990	420.2	96.2	0.89	92	IP55	F	S1	∆	50	380
YE4-315L1-2	2	160	283.6	2990	509.3	96.3	0.89	92	IP55	F	S1	∆	50	380
YE4-315L12-2	2	185	327.6	2990	588.9	96.4	0.89	92	IP55	F	S1	∆	50	380
YE4-315L2-2	2	200	353.8	2990	636.7	96.5	0.89	92	IP55	F	S1	∆	50	380
YE4-315LX1-2	2	220	384.9	2990	700.3	96.5	0.90	92	IP55	F	S1	∆	50	380
YE4-315LX2-2	2	250	432.6	2990	795.8	96.5	0.91	92	IP55	F	S1	∆	50	380
YE4-355M0-2	2	220	384.9	2990	700.3	96.5	0.90	92	IP55	F	S1	∆	50	380
YE4-355M-2	2	250	432.6	2990	795.8	96.5	0.91	97	IP55	F	S1	∆	50	380
YE4-355L0-2	2	280	484.5	2990	891.3	96.5	0.91	97	IP55	F	S1	∆	50	380
YE4-355L-2	2	315	545.0	2990	1002.8	96.5	0.91	97	IP55	F	S1	∆	50	380
YE4-355X1-2	2	355	621.1	2990	1130.1	96.5	0.90	97	IP55	F	S1	∆	50	380
YE4-355X2-2	2	375	656.0	2990	1193.8	96.5	0.90	97	IP55	F	S1	∆	50	380
YE4-400M1-2	2	355	621.1	2985	1130.1	96.5	0.90	97	IP55	F	S1	∆	50	380
YE4-400M2-2	2	400	699.8	2985	1273.3	96.5	0.90	97	IP55	F	S1	∆	50	380
YE4-400M3-2	2	450	787.2	2985	1432.5	96.5	0.90	97	IP55	F	S1	∆	50	380
YE4-400L1-2	2	500	874.7	2985	1591.7	96.5	0.90	97	IP55	F	S1	∆	50	380
YE4-400L2-2	2	560	968.9	2985	1782.7	96.5	0.91	97	IP55	F	S1	∆	50	380
YE4-400L3-2	2	630	1090.0	2985	2005.5	96.5	0.91	97	IP55	F	S1	∆	50	380
YE4-450X1-2	2	710	1228.5	2990	2260.2	96.5	0.91	97	IP55	F	S1	∆	50	380
YE4-450X2-2	2	800	1384.2	2990	2546.7	96.5	0.91	97	IP55	F	S1	∆	50	380
YE4-450X3-2	2	900	1557.2	2990	2865.0	96.5	0.91	97	IP55	F	S1	∆	50	380
YE4-450X4-2	2	1000	1711.4	2990	3183.3	96.5	0.92	97	IP55	F	S1	∆	50	380
YE4-80M1-4	4	0.55	1.3	1440	3.5	83.9	0.74	56	IP55	F	S1	Y	50	380
YE4-80M2-4	4	0.75	1.8	1440	4.8	85.7	0.74	56	IP55	F	S1	Y	50	380
YE4-90S-4	4	1.1	2.6	1450	7.0	87.2	0.75	59	IP55	F	S1	Y	50	380
YE4-90L-4	4	1.5	3.4	1450	9.6	88.2	0.76	59	IP55	F	S1	Y	50	380
YE4-100L1-4	4	2.2	4.7	1460	14.0	89.5	0.79	64	IP55	F	S1	Y	50	380
YE4-100L2-4	4	3	6.3	1460	19.1	90.4	0.80	64	IP55	F	S1	Y	50	380
YE4-112M-4	4	4	8.3	1460	25.5	91.1	0.80	65	IP55	F	S1	∆	50	380
YE4-112L-4	4	5.5	11.4	1460	35.0	91.9	0.80	65	IP55	F	S1	∆	50	380
YE4-132S-4	4	5.5	11.4	1475	35.0	91.9	0.80	71	IP55	F	S1	∆	50	380
YE4-132M-4	4	7.5	15.2	1475	47.8	92.6	0.81	71	IP55	F	S1	∆	50	380
YE4-132M2-4	4	9	18.0	1475	57.3	92.9	0.82	71	IP55	F	S1	∆	50	380
YE4-132L1-4	4	11	21.6	1475	70.0	93.3	0.83	71	IP55	F	S1	∆	50	380
YE4-132L2-4	4	15	28.9	1475	95.5	93.9	0.84	71	IP55	F	S1	∆	50	380
YE4-160M-4	4	11	21.6	1475	70.0	93.3	0.83	73	IP55	F	S1	∆	50	380
YE4-160M1-4	4	13	25.1	1475	82.8	93.6	0.84	73	IP55	F	S1	∆	50	380
YE4-160L-4	4	15	28.9	1475	95.5	93.9	0.84	73	IP55	F	S1	∆	50	380
YE4-160L2-4	4	18.5	35.1	1475	117.8	94.2	0.85	73	IP55	F	S1	∆	50	380
YE4-180M0-4	4	17	32.3	1480	108.2	94.1	0.85	76	IP55	F	S1	∆	50	380
YE4-180M-4	4	18.5	35.1	1480	117.8	94.2	0.85	76	IP55	F	S1	∆	50	380
YE4-180L0-4	4	20.5	38.8	1480	130.5	94.4	0.85	76	IP55	F	S1	∆	50	380
YE4-180L-4	4	22	41.6	1480	140.1	94.5	0.85	76	IP55	F	S1	∆	50	380
YE4-180L2-4	4	30	56.5	1480	191.0	94.9	0.85	76	IP55	F	S1	∆	50	380
YE4-180LX-4	4	37	69.5	1480	235.6	95.2	0.85	76	IP55	F	S1	∆	50	380
YE4-200L-4	4	30	56.5	1485	191.0	94.9	0.85	76	IP55	F	S1	∆	50	380
YE4-200L2-4	4	37	69.5	1485	235.6	95.2	0.85	76	IP55	F	S1	∆	50	380
YE4-225S-4	4	37	69.5	1485	235.6	95.2	0.85	78	IP55	F	S1	∆	50	380
YE4-225M-4	4	45	84.3	1485	286.5	95.4	0.85	78	IP55	F	S1	∆	50	380
YE4-225M2-4	4	55	101.5	1485	350.2	95.7	0.86	78	IP55	F	S1	∆	50	380
YE4-250M-4	4	55	101.5	1490	350.2	95.7	0.86	79	IP55	F	S1	∆	50	380
YE4-250M2-4	4	75	136.4	1490	477.5	96.0	0.87	79	IP55	F	S1	∆	50	380
YE4-250XM-4	4	75	136.4	1490	477.5	96.0	0.87	79	IP55	F	S1	∆	50	380
YE4-250MX-4	4	90	161.7	1490	573.0	96.1	0.88	79	IP55	F	S1	∆	50	380
YE4-280S-4	4	75	136.4	1490	477.5	96.0	0.87	80	IP55	F	S1	∆	50	380
YE4-280M-4	4	90	161.7	1490	573.0	96.1	0.88	80	IP55	F	S1	∆	50	380
YE4-280M1-4	4	110	195.0	1490	700.3	96.3	0.89	80	IP55	F	S1	∆	50	380
YE4-280MX-4	4	132	233.8	1490	840.4	96.4	0.89	80	IP55	F	S1	∆	50	380
YE4-315S-4	4	110	195.0	1490	700.3	96.3	0.89	88	IP55	F	S1	∆	50	380
YE4-315M-4	4	132	233.8	1490	840.4	96.4	0.89	88	IP55	F	S1	∆	50	380
YE4-315L1-4	4	160	279.6	1490	1018.7	96.6	0.90	88	IP55	F	S1	∆	50	380
YE4-315L12-4	4	185	323.0	1490	1177.8	96.7	0.90	88	IP55	F	S1	∆	50	380
YE4-315L2-4	4	200	349.2	1490	1273.3	96.7	0.90	88	IP55	F	S1	∆	50	380
YE4-315LX1-4	4	220	384.1	1490	1400.7	96.7	0.90	88	IP55	F	S1	∆	50	380
YE4-315LX2-4	4	250	436.5	1490	1591.7	96.7	0.90	88	IP55	F	S1	∆	50	380
YE4-355M01-4	4	220	384.1	1490	1400.7	96.7	0.90	92	IP55	F	S1	∆	50	380
YE4-355M-4	4	250	436.5	1490	1591.7	96.7	0.90	92	IP55	F	S1	∆	50	380
YE4-355M2-4	4	280	488.8	1490	1782.7	96.7	0.90	92	IP55	F	S1	∆	50	380
YE4-355L-4	4	315	549.9	1490	2005.5	96.7	0.90	92	IP55	F	S1	∆	50	380
YE4-355L2-4	4	355	633.9	1490	2260.2	96.7	0.88	92	IP55	F	S1	∆	50	380
YE4-355X1-4	4	355	633.9	1490	2260.2	96.7	0.88	92	IP55	F	S1	∆	50	380
YE4-355X2-4	4	375	669.6	1490	2387.5	96.7	0.88	92	IP55	F	S1	∆	50	380
YE4-400M1-4	4	355	633.9	1490	2260.2	96.7	0.88	93	IP55	F	S1	∆	50	380
YE4-400M2-4	4	400	714.2	1490	2546.7	96.7	0.88	93	IP55	F	S1	∆	50	380
YE4-400M3-4	4	450	803.5	1490	2865.0	96.7	0.88	93	IP55	F	S1	∆	50	380
YE4-400L1-4	4	500	892.7	1490	3183.3	96.7	0.88	93	IP55	F	S1	∆	50	380
YE4-400L2-4	4	560	988.6	1490	3565.3	96.7	0.89	93	IP55	F	S1	∆	50	380
YE4-400L3-4	4	630	1112.2	1490	4011.0	96.7	0.89	93	IP55	F	S1	∆	50	380
YE4-450X1-4	4	710	1253.5	1490	4520.3	96.7	0.89	95	IP55	F	S1	∆	50	380
YE4-450X2-4	4	800	1396.7	1490	5093.3	96.7	0.90	95	IP55	F	S1	∆	50	380
YE4-450X3-4	4	900	1571.2	1490	5730.0	96.7	0.90	95	IP55	F	S1	∆	50	380
YE4-450X4-4	4	1000	1745.8	1490	6366.7	96.7	0.90	95	IP55	F	S1	∆	50	380
YE4-90S-6	6	0.75	2.0	960	7.2	82.7	0.70	57	IP55	F	S1	Y	50	380
YE4-90L-6	6	1.1	2.8	960	10.5	84.5	0.70	57	IP55	F	S1	Y	50	380
YE4-100L-6	6	1.5	3.7	965	14.3	85.9	0.71	61	IP55	F	S1	Y	50	380
YE4-112M-6	6	2.2	5.4	940	21.0	87.4	0.71	65	IP55	F	S1	Y	50	380
YE4-132S-6	6	3	7.2	975	28.7	88.6	0.71	69	IP55	F	S1	Y	50	380
YE4-132M1-6	6	4	9.4	975	38.2	89.5	0.72	69	IP55	F	S1	∆	50	380
YE4-132M2-6	6	5.5	12.8	975	52.5	90.5	0.72	69	IP55	F	S1	∆	50	380
YE4-160M-6	6	7.5	16.4	980	71.6	91.3	0.76	73	IP55	F	S1	∆	50	380
YE4-160L-6	6	11	23.5	980	105.1	92.3	0.77	73	IP55	F	S1	∆	50	380
YE4-180L-6	6	15	30.7	985	143.3	92.9	0.80	73	IP55	F	S1	∆	50	380
YE4-180L2-6	6	17	34.6	985	162.4	93.2	0.80	73	IP55	F	S1	∆	50	380
YE4-180L3-6	6	20.5	41.1	985	195.8	93.6	0.81	73	IP55	F	S1	∆	50	380
YE4-200L1-6	6	18.5	37.6	985	176.7	93.4	0.80	73	IP55	F	S1	∆	50	380
YE4-200L2-6	6	22	44.0	985	210.1	93.7	0.81	73	IP55	F	S1	∆	50	380
YE4-225M-6	6	30	59.0	985	286.5	94.2	0.82	74	IP55	F	S1	∆	50	380
YE4-250M-6	6	37	71.7	990	353.4	94.5	0.83	76	IP55	F	S1	∆	50	380
YE4-280S-6	6	45	86.9	990	429.8	94.8	0.83	78	IP55	F	S1	∆	50	380
YE4-280M-6	6	55	104.6	990	525.3	95.1	0.84	78	IP55	F	S1	∆	50	380
YE4-315S-6	6	75	142.2	990	716.3	95.4	0.84	83	IP55	F	S1	∆	50	380
YE4-315M-6	6	90	168.3	990	859.5	95.6	0.85	83	IP55	F	S1	∆	50	380
YE4-315L1-6	6	110	205.2	990	1050.5	95.8	0.85	83	IP55	F	S1	∆	50	380
YE4-315L2-6	6	132	242.9	990	1260.6	96.0	0.86	83	IP55	F	S1	∆	50	380
YE4-355M1-6	6	160	293.8	990	1528.0	96.2	0.86	85	IP55	F	S1	∆	50	380
YE4-355M12-6	6	185	339.4	990	1766.8	96.3	0.86	85	IP55	F	S1	∆	50	380
YE4-355M2-6	6	200	366.9	990	1910.0	96.3	0.86	85	IP55	F	S1	∆	50	380
YE4-355M3-6	6	220	403.2	990	2101.0	96.4	0.86	85	IP55	F	S1	∆	50	380
YE4-355L-6	6	250	457.7	990	2387.5	96.5	0.86	85	IP55	F	S1	∆	50	380
YE4-355L2-6	6	280	524.3	990	2674.0	96.6	0.84	85	IP55	F	S1	∆	50	380
YE4-355X1-6	6	315	604.2	990	3008.3	96.6	0.82	91	IP55	F	S1	∆	50	380
YE4-400M1-6	6	315	604.2	990	3008.3	96.6	0.82	92	IP55	F	S1	∆	50	380
YE4-400M2-6	6	355	680.9	990	3390.3	96.6	0.82	92	IP55	F	S1	∆	50	380
YE4-400L1-6	6	400	758.0	990	3820.0	96.6	0.83	92	IP55	F	S1	∆	50	380
YE4-400L2-6	6	450	852.8	990	4297.5	96.6	0.83	92	IP55	F	S1	∆	50	380
YE4-400L3-6	6	500	947.5	990	4775.0	96.6	0.83	92	IP55	F	S1	∆	50	380
YE4-450X0-6	6	560	1048.6	990	5348.0	96.6	0.84	95	IP55	F	S1	∆	50	380
YE4-450X1-6	6	630	1179.6	990	6016.5	96.6	0.84	95	IP55	F	S1	∆	50	380
YE4-450X2-6	6	670	1254.5	990	6398.5	96.6	0.84	95	IP55	F	S1	∆	50	380
YE4-450X3-6	6	710	1329.4	990	6780.5	96.6	0.84	95	IP55	F	S1	∆	50	380
YE4-450X4-6	6	750	1404.3	990	7162.5	96.6	0.84	95	IP55	F	S1	∆	50	380
YE4-450X5-6	6	800	1498.0	990	7640.0	96.6	0.84	95	IP55	F	S1	∆	50	380
YE4-100L1-8	8	0.75	2.2	710	9.6	78.4	0.66	59	IP55	F	S1	Y	50	380
YE4-100L2-8	8	1.1	3.1	710	14.0	80.8	0.67	59	IP55	F	S1	Y	50	380
YE4-112M-8	8	1.5	4.0	710	19.1	82.6	0.69	61	IP55	F	S1	Y	50	380
YE4-132S-8	8	2.2	5.7	725	28.0	84.5	0.70	64	IP55	F	S1	Y	50	380
YE4-132M-8	8	3	7.6	725	38.2	85.9	0.70	64	IP55	F	S1	Y	50	380
YE4-160M1-8	8	4	9.8	730	50.9	87.1	0.71	68	IP55	F	S1	∆	50	380
YE4-160M2-8	8	5.5	13.1	730	70.0	88.3	0.72	68	IP55	F	S1	∆	50	380
YE4-160L-8	8	7.5	17.2	730	95.5	89.3	0.74	68	IP55	F	S1	∆	50	380
YE4-180L-8	8	11	25.0	735	140.1	90.4	0.74	70	IP55	F	S1	∆	50	380
YE4-200L-8	8	15	33.3	735	191.0	91.2	0.75	73	IP55	F	S1	∆	50	380
YE4-225S-8	8	18.5	40.9	740	235.6	91.7	0.75	73	IP55	F	S1	∆	50	380
YE4-225M-8	8	22	47.8	740	280.1	92.1	0.76	73	IP55	F	S1	∆	50	380
YE4-250M-8	8	30	63.9	740	382.0	92.7	0.77	75	IP55	F	S1	∆	50	380
YE4-280S-8	8	37	77.4	740	471.1	93.1	0.78	76	IP55	F	S1	∆	50	380
YE4-280M-8	8	45	93.9	740	573.0	93.4	0.78	76	IP55	F	S1	∆	50	380
YE4-315S-8	8	55	111.5	745	700.3	93.7	0.80	82	IP55	F	S1	∆	50	380
YE4-315M-8	8	75	151.2	745	955.0	94.2	0.80	82	IP55	F	S1	∆	50	380
YE4-315L1-8	8	90	178.8	745	1146.0	94.4	0.81	82	IP55	F	S1	∆	50	380
YE4-315L2-8	8	110	217.9	745	1400.7	94.7	0.81	82	IP55	F	S1	∆	50	380
YE4-315L3-8	8	132	260.9	745	1680.8	94.9	0.81	82	IP55	F	S1	∆	50	380
YE4-355M1-8	8	132	260.9	745	1680.8	94.9	0.81	89	IP55	F	S1	∆	50	380
YE4-355M2-8	8	160	311.7	745	2037.3	95.1	0.82	89	IP55	F	S1	∆	50	380
YE4-355M3-8	8	185	359.7	745	2355.7	95.3	0.82	89	IP55	F	S1	∆	50	380
YE4-355L-8	8	200	388.5	745	2546.7	95.4	0.82	89	IP55	F	S1	∆	50	380
YE4-355L2-8	8	220	432.6	745	2801.3	95.4	0.81	89	IP55	F	S1	∆	50	380
YE4-355X1-8	8	250	497.7	745	3183.3	95.4	0.80	89	IP55	F	S1	∆	50	380
YE4-355X2-8	8	315	627.1	745	4011.0	95.4	0.80	89	IP55	F	S1	∆	50	380
YE4-400M1-8	8	250	497.7	745	3183.3	95.4	0.80	91	IP55	F	S1	∆	50	380
YE4-400M2-8	8	280	557.4	745	3565.3	95.4	0.80	91	IP55	F	S1	∆	50	380
YE4-400L1-8	8	315	627.1	745	4011.0	95.4	0.80	91	IP55	F	S1	∆	50	380
YE4-400L2-8	8	355	706.7	745	4520.3	95.4	0.80	91	IP55	F	S1	∆	50	380
YE4-400L3-8	8	400	796.3	745	5093.3	95.4	0.80	91	IP55	F	S1	∆	50	380
YE4-450X1-8	8	450	884.8	745	5730.0	95.4	0.81	93	IP55	F	S1	∆	50	380
YE4-450X2-8	8	500	983.1	745	6366.7	95.4	0.81	93	IP55	F	S1	∆	50	380
YE4-450X3-8	8	560	1101.1	745	7130.7	95.4	0.81	93	IP55	F	S1	∆	50	380
YE4-450X4-8	8	630	1238.7	745	8022.0	95.4	0.81	93	IP55	F	S1	∆	50	380

波肖门尾图库

Contact Information

4000-999-510
